High precision iron plate

¥6,200 税込

送料が別途¥5,000かかります。

Please contact us on Instagram if you would like to purchase.

Reference plate Base plate Parallel flatness ±0.001mm (±1μ micron) Iron plate Natural whetstone Whetstone Plane Chisel Carpentry tool Kitchen knife Small knife Carving knife Wood carving Sharpening Metal board

size
210mm×75mm×15mm

weight
about 2.0kg


Double-sided processing with a precision grinder. We processed a metal plate with parallelism and flatness of ±1μ (microns). (SPHC material)
(Surface roughness: about Ra0.8μ)
Measurements are taken using a surface plate with a pick test of 1μ.

●Application
・Jig for checking the warpage of blades.
・A jig for checking the flatness of knives, natural whetstones, artificial whetstones, etc.
- Back pressing using abrasive paste.
・Attach sandpaper or the like to the base plate to smooth out the surface of the whetstone.
In addition, please use it for various purposes.

*Since each product is inspected for accuracy, we will accept returns if the flatness is not obtained.

* There are nests, scratches, etc. in the material. Please refrain from bidding if you are looking for perfection.

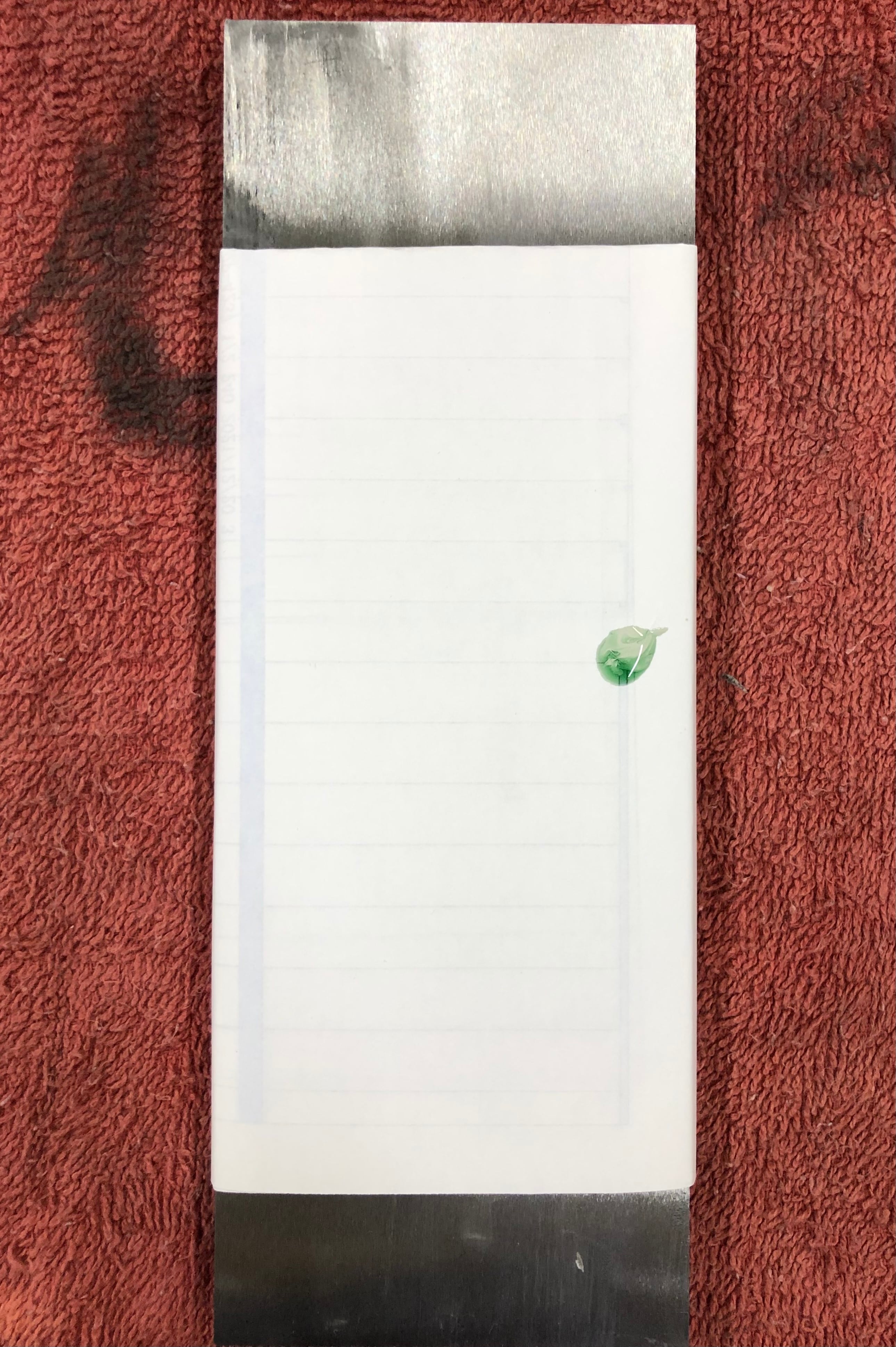

* The photo showing the back of the chisel is made by adding diamond paste (oil-based) with abrasive grains of 0.5μ to 3μ, laying paper on this product, and polishing it to a mirror finish.


● Flatness reference value
・Shapton Heals Flatness ±15μ
・Shapton Aircraft Carrier Flatness ±3μ
· Inexpensive diamond electrodeposited whetstone sold at home centers Flatness ±100 μ (0.1 mm)


*For rust prevention at the time of shipping, we will apply a thin layer of oil before shipping.

*Each corner is not chamfered, so be careful not to injure yourself.

*Because it is a general steel material, please prevent it from rusting.

*Please be careful not to hit it or drop it. It will cause warpage.
